FIBRA – FIBRA PLUS
Specifically conceived, designed and manufactured for fibre optic cable laying. Compact design, extremely manoeuvrable, easy to lift and transport. With inbuilt single or double cooler depending on air temperature demand, condensates separator. All in one unit, immediately ready to work. A professional tool for a very specific and professional sector.
Integrated moisture separator (FIBRA-FIBRA PLUS)
Integrated aftercooler for cool air delivery (FIBRA PLUS)
Unit ready to operate
High quality air output (oil carry-over <1 PP)
Compact design, extremely manoeuvrable
Easy to transport, lift and load
Outstanding accessibility for maintenance
VRK FIBRA - Europe, World
| Max. Operating Pressure | 15 bar / 218 psi |
| Free Air Delivery | 1000 l/min / 35 cfm |
| Compressed air output | Ambient +20°C / Ambient +36°F |

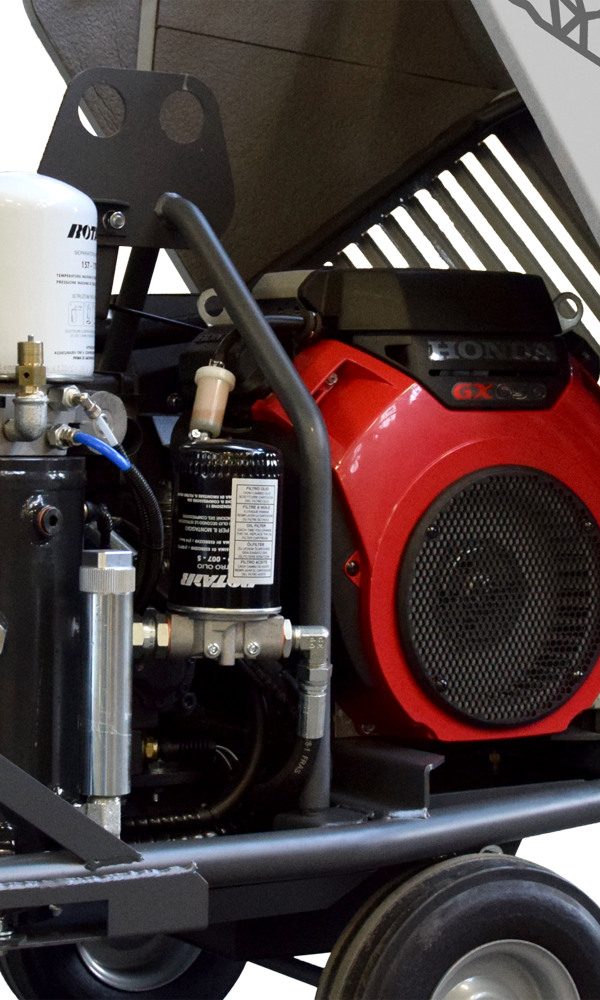

VRK FIBRA Evo
| Free Air Delivery | 1200 l/min / 42 cfm |
| Operating pressure | 15 bar / 218 psi |
| Engine data | Honda | GX 690 / 16,5 kW - 22,4 CV | 3100 rpm |
| Weights | 240 kg / 529 lbs / 240 kg / 529 lbs (SKID adapters) |
| Operational parameters | Max altitude: 1800 m s.l.m. / Min/Max working temperature / -10°C / +50°C | 14°F / 122°F |
| Quality of air | Oil in air: 1-3 PPM / Compressed air temp.: ambient +20°C | +36°F |
VRK FIBRA plus - Europe, World
| Max. Operating Pressure | 15 bar / 218 psi |
| Free Air Delivery | 1000 l/min / 35 cfm |
| Compressed air output | Ambient +0 / +2°C / Ambient +0 / +3,6°F |
VRK FIBrA PLUS evo
| Free Air Delivery | 1200 l/min / 42 cfm |
| Operating pressure | 15 bar / 218 psi |
| Engine data | Honda | GX 690 / 16,5 kW - 22,4 CV | 3100 rpm |
| Weights | 250 kg / 551 lbs / 250 kg / 551 lbs (SKID adapters) |
| Operational parameters | Max altitude: 1800 m s.l.m. / Min/Max working temperature: / -10°C / +50°C | 14°F / 122°F |
| Quality of air | Oil in air: 1-3 PPM / Compressed air temp.: ambient +0°C / +2°C | +0°F / +3,6°F |
